MECHANICAL SUSPENSION AXLE GROUP

The suspension system is connected to the chassis and aims to reduce the transmission of the generated energy to the chassis as much as possible. Suspension system components: springs, dampers, connection systems, stabilizing bars and rutils. The aim of this system is to ensure maximum contact between the road and the tires. In this way, you can brake more healthily and quickly change direction with the steering wheel. We can produce air suspension axles with different capacities. (9-16 tons)

MECHANICAL SUSPENSION AXLE GROUP | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

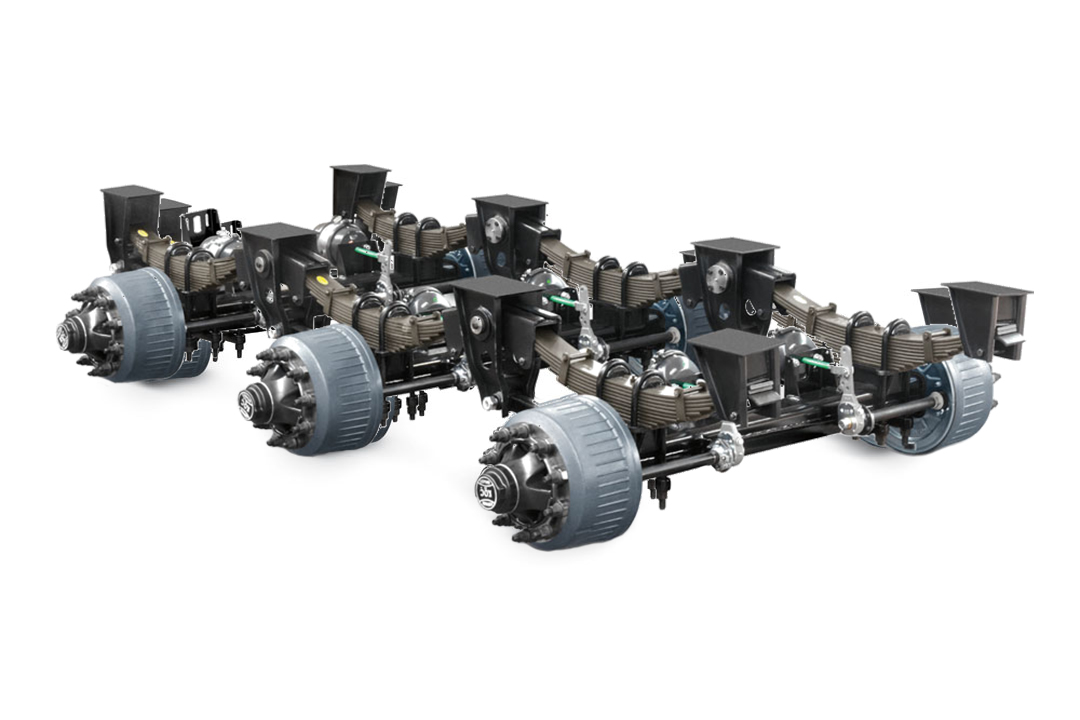

MECHANICAL SUSPENSION AXLE GROUP | PHOTOS

Photos are for visualization purposes only and may change.

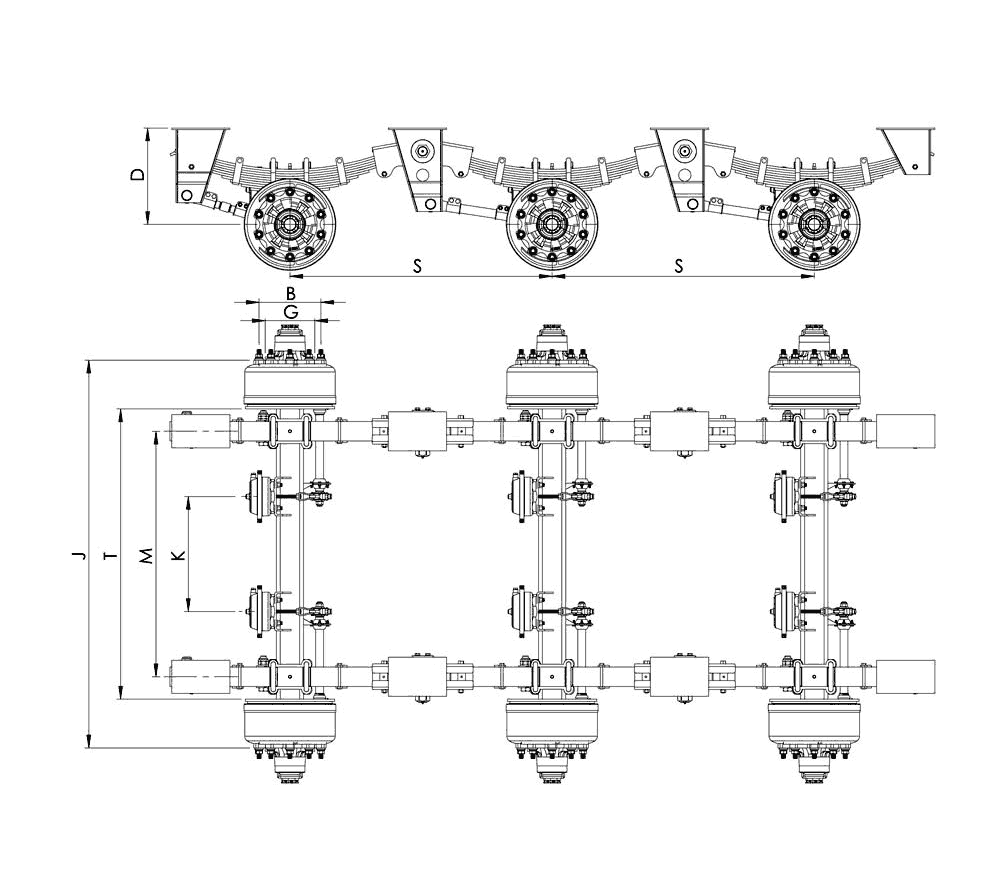

MECHANICAL SUSPENSION AXLE GROUP | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 K
(mm)		 M
(mm)		 T
(mm)		 S
(mm)		 D
(mm)		 G/B
(mm)		 Spring
Layers
TAS MS 09 3 x 9 33213
218248		 120 x 120 420 x 180 1820 330 900-950 1250 1350 450 & 490 280.8/335
m22x1.5-10		 8
TAS MS 12 3 x 12 33213
218248		 140 x 140 420 x 200 1820 330 900-950 1250 1350 430 & 470 280.8/335
m22x1.5-10		 10
TAS MS 14 3 x 14 33215
33019		 140 x 140 420 x 220 1820 330 900-950 1250 1350 450 & 490 280.8/335
m22x1.5-10		 12
TAS MS 16 3 x 16 32314
32222		 150 x 150 420 x 220 1820 330 900-950 1250 1350 460 & 490 280.8/335
m22x1.5-10		 14
